Design & Manufacturing of Stainless Steel Deep Draw Tool for the Heavy Duty Truck Industry

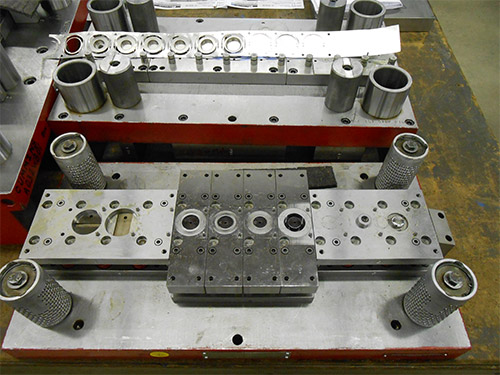

Deep Draw Tool
( Click image to enlarge )
Deep Draw Tool

CLL Engineering combines industry leading technologies with our own comprehensive knowledge to innovate solutions that provide value to our customers. We engineered the tooling shown here to provide predictable accuracy and economy in the manufacture of an engine baffle for a customer in the heavy duty truck industry. Fabricated from 321 stainless steel, this 8-station progressive draw die was precision crafted to draw thin stainless steel at maximum depth while maintaining precision tolerances.

Our ability to design and simulate complex stamping processes early in the development stage enabled us to refine the tooling design and build prototypes to validate the concept. Featuring overall dimensions of 20" in length and 32" in width, our master tool makers utilized our precision EDM machines, CNC mills, and jig grinding equipment to fabricate the tooling components to within ± 0.001" tolerances. We also heat treated the die to ensure it would provide long term use and withstand the high stresses of the progressive stamping process.

If you are interested in learning more about this project or our process, and how they can benefit your next application, contact us today.

Highlights of this Heavy Duty Truck Industry Project

Product Description
Deep Draw Tool for formed/drawn baffle (heavy duty truck engine)
Progressive Die Capabilities Applied/Processes
Prototype Tooling
Engineering & Design
CNC Machining
Tool Assembly

Heat Treating
Equipment Used to Manufacture Part
Wire EDM, CNC Mill, Jig Grinding
Overall Part Dimensions
20" x 32"
Tightest Tolerances
± 0.001"
Material Used
321 Stainless Steel
In process testing/inspection performed
Piece Part Inspection
Industry for Use
Heavy Truck
1 - 8 Station Progressive Die
Delivery/Turnaround Time
8 - 10 Weeks
Delivery Location
Indianapolis, IN
Standards Met
Customer Specifications, 2D CAD Drawing
Product Name
Formed/Drawn Baffle
