Custom Engineering of a Graphite Tool for Heavy Duty Engine Head Gaskets

Graphite Tool Engineering
( Click image to enlarge )
Graphite Tool Engineering

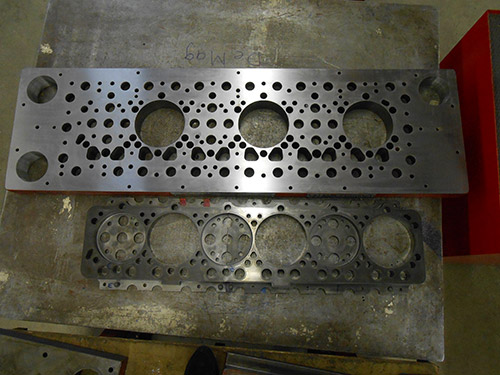

At CLL Engineering, it’s our goal to keep our customers competitive by providing them with precise, functional, and reliable tooling that results in streamlined operations, minimal material waste, and low maintenance costs. We manufactured the large compound die shown here for a customer in the heavy duty equipment industry. Featuring graphite construction with a stainless steel core, this die allows the cutting of internal and external part features on a single press stroke.

Designed for use in the manufacture of an engine head gasket, our challenge was to fabricate this die to meet the ±.0005" tolerance requirements. Our highly experienced toolmakers utilized advanced CAD modeling tools, engineered prototypes, and crafted the precise geometry using our Illinois of the art machinery. We manufactured and tested the die, which features dimensions of 30" in length and 40" in width, and delivered it fine-tuned and ready for the stamping press.

When your project requires the highest level of precision, the multi-disciplined team at CLL Engineering will expertly manufacture tooling both cost effectively and with dimensional tolerances that are not achievable at many of our competitors. Contact us today to learn more.

Highlights of this Heavy Duty Equipment Industry Project

Product Description
Tool for Heavy Duty Engine Head Gasket
Compound Stamping Die Capabilities Applied/Processes
Prototype Tooling
Engineering & Design
CNC Machining
Tool Assembly

Heat Treating
Equipment Used to Manufacture Part
Wire EDM, CNC Mill, Jig Grinding
Overall Part Dimensions
30" x 45"
Tightest Tolerances
Material Used
Graphite with Stainless Steel Core
In process testing/inspection performed
Piece part inspection
Industry for Use
Heavy Duty Truck
1 Compound Die
Delivery/Turnaround Time
12 Weeks
Delivery Location
Danville, KY
Standards Met
Customer supplied print, 2D CAD Drawing
Product Name
Tool for Heavy Duty Engine Head Gasket
Why did you choose this project to show case?
Highlights the ability to achieve/keep tight tolerances on large die.

Additional Images

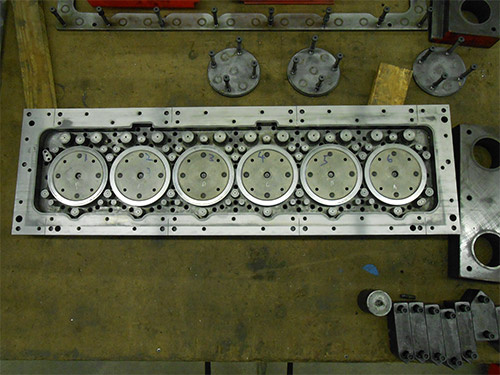

Custom Engineering
Custom Engineering

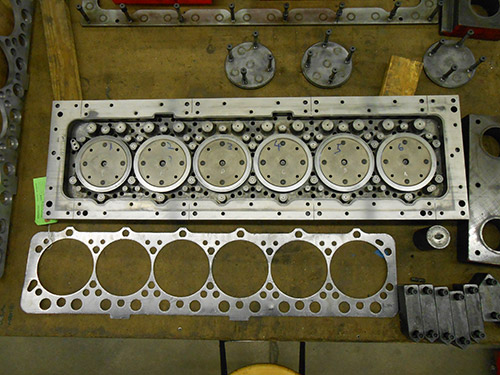

Graphite Tool
Graphite Tool

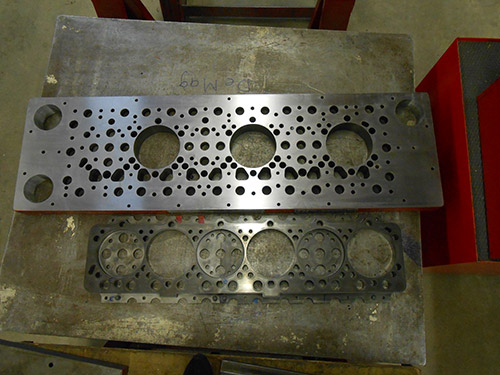

Heavy Duty Engine Head Gaskets
Heavy Duty Engine Head Gaskets

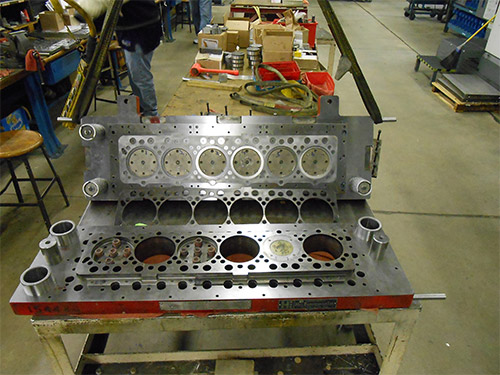

Tool Engineering
